One Applies to All
Universal cabinet fits in various modules of different pixel pitches (P1.25,P1.53,P1.667,P1.83,P2,P2.5,P3,P4,P5), exceptionally friendly for product upgrade and cost saving.
Excellent Display as Always
3840Hz refresh rate, smart brightness and chroma correction, 160° wide viewing angle and quick response to dynamics pictures contribute to exquisite presentation as always.

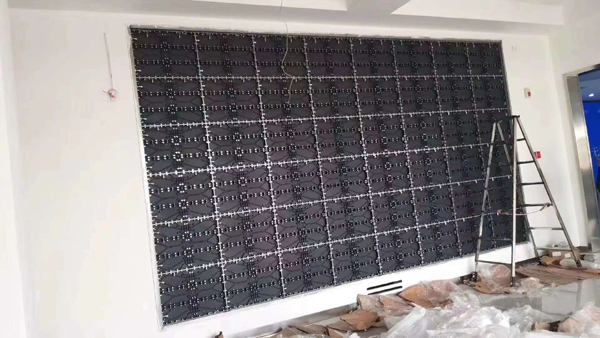

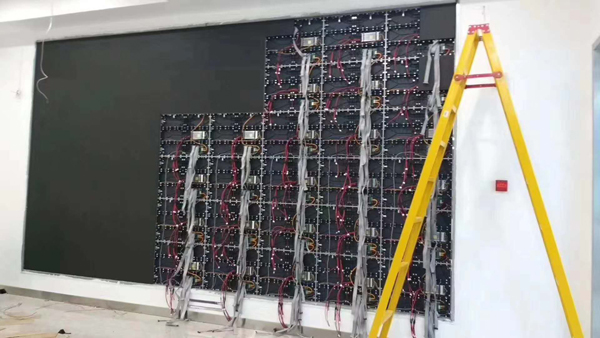

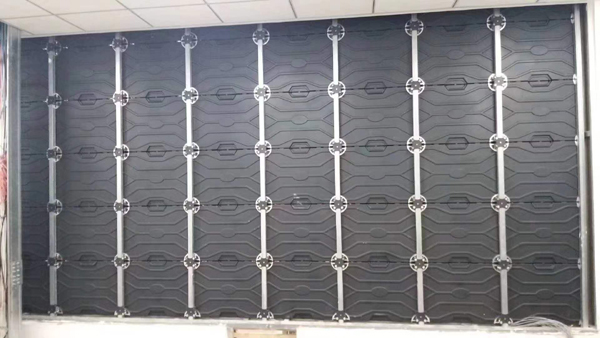

Flexible and Efficient Installation
Wall mount, stack or hang panel in total thickness ≤100mm and with fast interlocking.
More Pleasing Finished Outlook
Internal wiring without exposed cables stabilizes signal and electricity transmission, and meanwhile generates a more pleasing appearance.

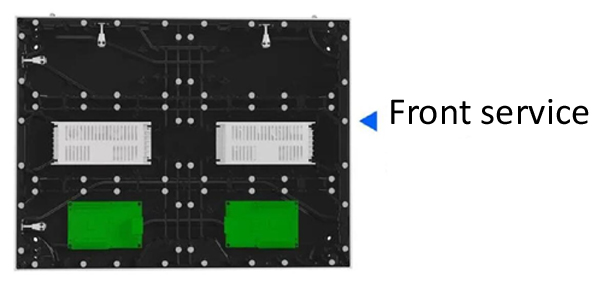

Convenient Maintenance
Support complete front and rear maintenance to save your space.
Item | Value |
| Model NO. | CDN-181 |
| Pixel Pitch | 1.86 |
| Pixel Density (dots/sqm) | 288906 |
| LED Type | SMD1515 |
| Viewing Angle | H:120 V:120 |
| Brightness (nits) | 800～1000 |
| Refresh Rate | 3840 |
| Module Size(mm) | 320*160 |

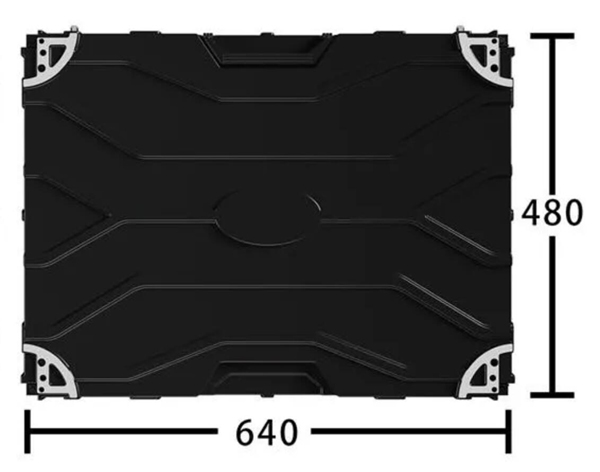

| Cabinet Size | 640*480 |
| Cabinet Material | Die-casting aluminum |
| Cabinet Weight | 7.5KG |
| Power Consumption (Avg./Max. W/sqm) | 180/560 |
| Operating Temp/Humidity | -20℃～45℃ 10～90%RH |
| Storage Temp/Humidity | -25℃～50℃ 10～90%RH |
| Lifetime(hours) | ≥50000(Nomal Temp) |
