New design P5 outdoor advertising led display
Item | Value |
Model NO. | CDF-500 |
Pixel Pitch | 5.2*10.4 (H*V) |

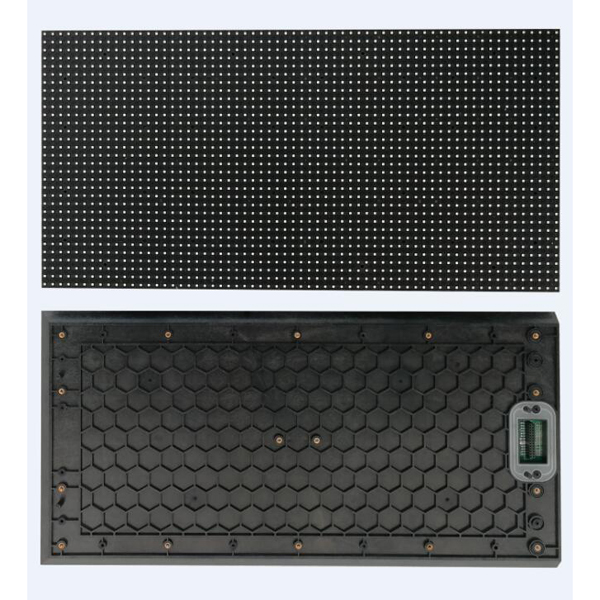

Module Size(mm) | 500*250 |
Module resolution | 96*24 |
Pixel Configuration | 1R1G1B |
LED Type | SMD3535 |

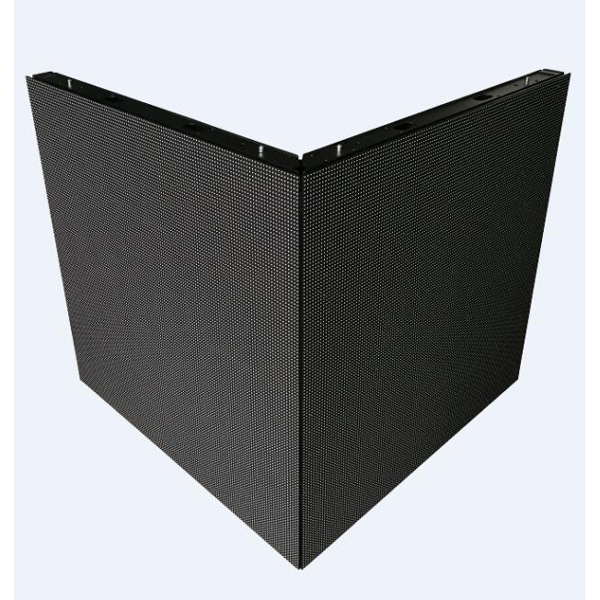

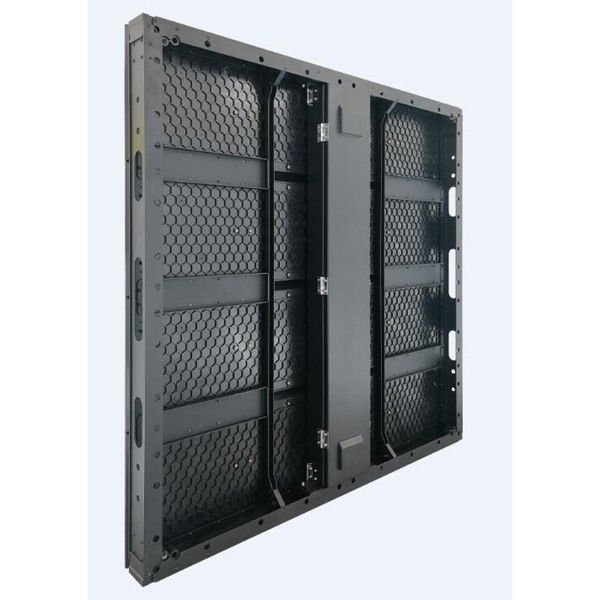

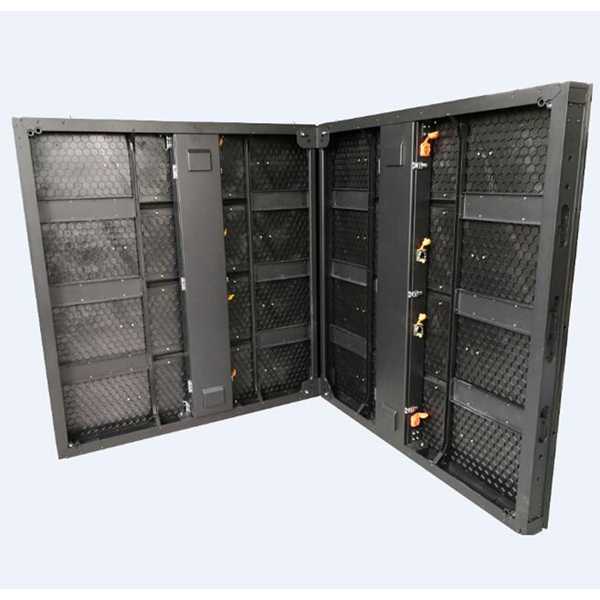

Cabinet Size(mm) | 1000*1000*75 |
Cabinet resolution | 192*96 |
Cabinet weight (KG) | 20 |
Contrast ratio | 5000:1 |
Viewing Angle | H:120 V:120 |
Brightness (nits) | 5500 |
Refresh Rate (HZ) | 1920/3840 |
IP Grade | IP65/54 |
Power Consumption (Avg./Max. W/sqm) | 260/800 |
Operating Temp/Humidity | -20℃~45℃ 10~90%RH |
Storage Temp/Humidity | -25℃~50℃ 10~90%RH |
Lifetime(hours) | ≥50000(Nomal Temp) |
